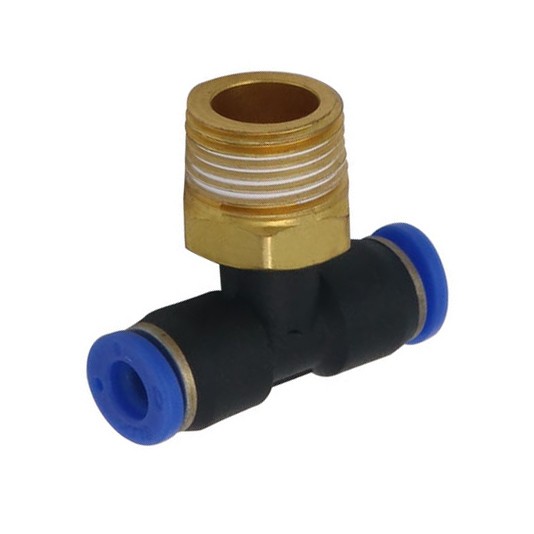

輔助元件 — PD T型側三通外螺
技術參數
型號
PH4-M5,、PH4-01、PH4-02,、PH6-M5,、PH6-01,、PH6-02、PH6-03,、PH6-04,、PH8-01、PH8-02,、PH8-03,、PH8-04、PH 10-01,、PH 10-02,、PH 10-03、PH 10-04,、PH 12-02,、PH 12-04

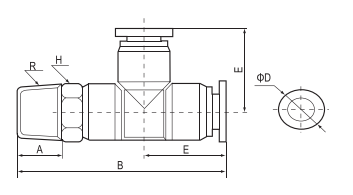

外型尺寸
| 公制插管 | ΦD | R | A | B | H | E |
| PD4-M5 | 4 | M5 | 3.5 | 35 | 10 | 18.7 |
| PD4-01 | 4 | PT1/8 | 7 | 35 | 10 | 18.7 |
| PD4-02 | 4 | PT1/4 | 9 | 37.5 | 14 | 18.7 |
| PD6-M5 | 6 | M5 | 3.5 | 38 | 10 | 20.3 |
| PD6-01 | 6 | PT1/8 | 7 | 38 | 10 | 20.3 |
| PD6-02 | 6 | PT1/4 | 9 | 40.5 | 14 | 20.3 |
| PD6-03 | 6 | PT3/8 | 10 | 39.5 | 17 | 20.3 |
| PD6-04 | 6 | PT1/2 | 11 | 43.5 | 21 | 20.3 |
| PD8-01 | 8 | PT1/8 | 7 | 40 | 12 | 22.8 |
| PD8-02 | 8 | PT1/4 | 9 | 42 | 14 | 22.8 |
| PD8-03 | 8 | PT3/8 | 10 | 44.5 | 17 | 22.8 |
| PD8-04 | 8 | PT1/2 | 11 | 45.5 | 21 | 22.8 |
| PD10-01 | 10 | PT1/8 | 7 | 49 | 17 | 26.2 |
| PD10-02 | 10 | PT1/4 | 9 | 51 | 17 | 26.2 |
| PD10-03 | 10 | PT3/8 | 10 | 52 | 17 | 26.2 |
| PD10-04 | 10 | PT1/2 | 11 | 53 | 21 | 26.2 |
| PD12-01 | 12 | PT1/8 | 7 | 51.5 | 19 | 28.2 |
| PD 12-02 | 12 | PT1/4 | 9 | 53.5 | 19 | 28.2 |
| PD 12-03 | 12 | PT3/8 | 10 | 54.5 | 19 | 28.2 |
| PD 12-04 | 12 | PT1/2 | 11 | 55.5 | 21 | 28.2 |
| PD 14-03 | 14 | PT3/8 | 10 | 21 | 35 | |
| PD 14-04 | 14 | PT1/2 | 11 | 85 | 21 | 35 |
