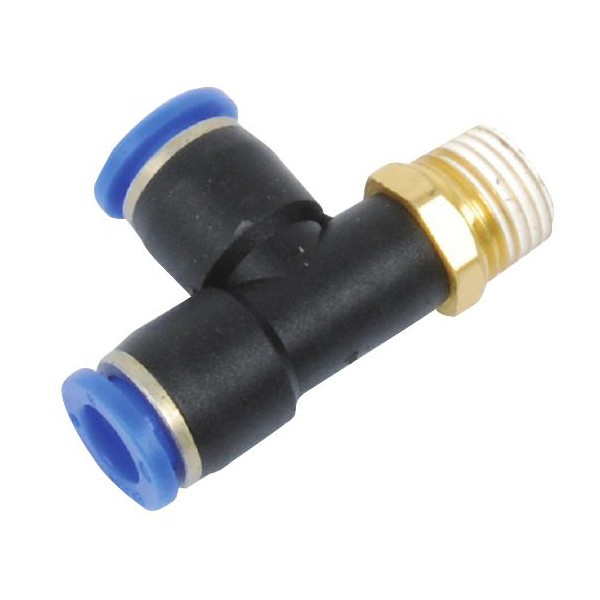

輔助元件 — PX Y型螺紋三通
技術(shù)參數(shù)
型號
PX4-M5PX8-03
PX4-01PX8-04
PX4-02PX10-01
PX6-M5PX 10-02
PX6-01PX10-03
PX6-02PX 10-04
PX6-03PX12-02
PX6-04PX12-03
PX8-01PX12-04
PX8-02

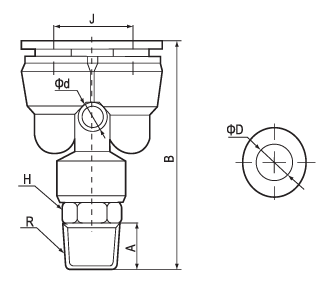

外型尺寸
| 公制插管 | ΦD | R | A | B | H | J | E |
| PX4-M5 | 4 | M5 | 3.5 | 37.7 | 10 | 10.8 | 2.5 |
| PX4-01 | 4 | PT1/8 | 7 | 37.7 | 10 | 10.8 | 2.5 |
| PX4-02 | 4 | PT1/4 | 9 | 40.2 | 14 | 10.8 | 2.5 |
| PX6-M5 | 6 | M5 | 3.5 | 41.5 | 10 | 13 | 3.5 |
| PX6-01 | 6 | PT1/8 | 6.5 | 40.3 | 10 | 13 | 3.5 |
| PX6-02 | 6 | PT1/4 | 9 | 42.8 | 14 | 13 | 3.5 |
| PX6-03 | 6 | PT3/8 | 10 | 44.8 | 17 | 13 | 3.5 |
| PX6-04 | 6 | PT1/2 | 11 | 45.8 | 21 | 13 | 3.5 |
| PX8-01 | 8 | PT1/8 | 7 | 45.5 | 12 | 15.2 | 4 |
| PX8-02 | 8 | PT1/4 | 9 | 47.5 | 14 | 15.2 | 4 |
| PX8-03 | 8 | PT3/8 | 10 | 50 | 17 | 15.2 | 4 |
| PX8-04 | 8 | PT1/2 | 11 | 51 | 21 | 15.2 | 4 |
| PX10-01 | 10 | PT1/8 | 7 | 49.7 | 17 | 19 | 4.2 |
| PX10-02 | 10 | PT1/4 | 9 | 51.7 | 17 | 19 | 4.2 |
| PX10-03 | 10 | PT3/8 | 10 | 52.7 | 17 | 19 | 4.2 |
| PX10-04 | 10 | PT1/2 | 11 | 53.7 | 21 | 19 | 4.2 |
| PX12-01 | 12 | PT1/8 | 8 | 54.2 | 19 | 20.5 | 4.2 |
| PX12-02 | 12 | PT1/4 | 10 | 56.2 | 19 | 20.5 | 4.2 |
| PX12-03 | 12 | PT3/8 | 10 | 57.2 | 19 | 20.5 | 4.2 |
| PX12-04 | 12 | PT1/2 | 11 | 58.2 | 21 | 20.5 | 4.2 |
